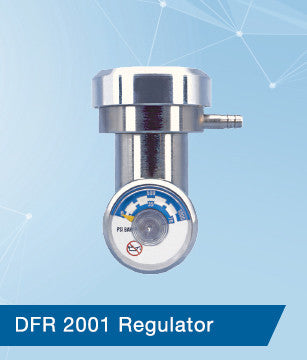

DFR 2001

$320⁰⁰
Save $130⁰⁰

The two stage DFR 2000 Series regulators are designed for use with instruments that utilize a pump to draw the calibration gas. The regulators provide the exact amount of gas the instrument pump requires. These simple-to-use regulators make calibration quick and easy by eliminating the need for sample bags, flow meters or special operator training. DFR 2000 series regulators are patented.

Series:	2000
Type:	Two Stage Demand Flow

Technical specification:	Model : 2001 Maximum Inlet Pressure : 0-1000 psig/ 70 bar Demand Pressure : 3" H₂O/ 5.6mm Hg Inlet : 5/8-18 UNF Outlet : 3/16" Barb/4.8mm Gauge : 0-1000 psig/70bar For Use with Calgaz Cylinders : Calgaz 34, Calgaz 58, Calgaz 116, Calgaz 103s
Flow Rate:	0-3 LPM
Construction:	Body : EN plated brass Seat & Seals : Teflon® & Viton® Piston : Brass Washer : Buna N (2007 only) Diaphragm : Buna N (PVC 2004 & 2006) Bonnet : Aluminum
Weight:	1 lb
Part Number (Legacy):	A0177682 (CZF2R000162)
