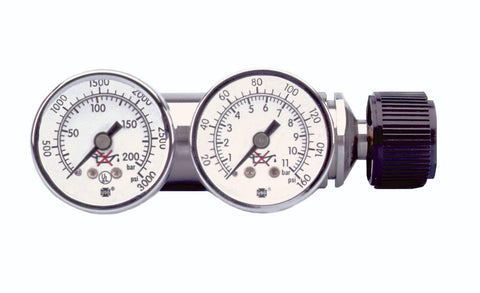

Regulator Model 1002
These rugged economical regulators are single-stage design, and can be used with Calgaz 34, Calgaz 58, Calgaz 103s and Calgaz 116 cylinders. Each regulator is preset to deliver gas at a flow rate specified by the customer.
| Body: | Nickel plated brass | ||
| Seat: | PTFE (lst stage); | ||
| brass and Viton® (2nd stage) | |||
| Diaphragm: | stainless steel | ||
| Gauges: | chrome plated brass | ||
| Filter: | sintered bronze | ||
| Outlet Valve: | optional | ||
| Weight | 1 lb/0.63 kg | ||
| Inlet Body Port: | 1/4" NPT internal, accepts standard CGA fitting (specify) | ||
| Outlet Body Port: | 1/8" NPT internal | ||
| Leakage Rate: | 2 x 10-6 SCCS He | ||
